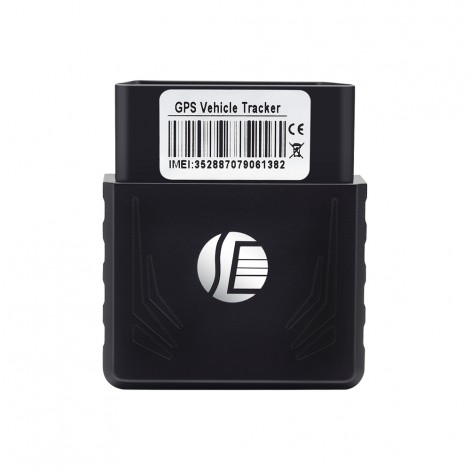

Newest TK306 GPS Tracker based on existing GSM/GPRS network and GPS satellites

Availability: In stock

30,00 CHF
Menge:

NEW PRODUCT (with original packaging) -- TK306 GPS Tracker based on existing GSM/GPRS network and GPS satellites


1 SUMMARY
Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS, APP and Internet. It adopts the most advanced technology of GPS and AGPS dual positioning.

Specifications

Content Specs.
Dim. 50*45*20mm
Weight 40g
Network GSM/GPRS
Band 850/900/1800/1900Mhz
GPS sensitivity -159dBm
GPS accuracy 10m
Work voltage 12V-36v
Time To First Fix Cold status  45s-150s
Warm status  35s
 Hot status  1s
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +55°C
Humidity 5%--95% non-condensing


2.Operational
Notices:
1).GPS tracking can be worked outdoor. Must have mobile phone gsm signal and have GPS signal,  It can block GPS satellite signal when there are metal or  building above the GPS tracker
2).Pls make sure GSM 2g SIM card or compatibility 2G GSM network sim card, supports making calls, sending messages, GPRS network.have money,Cancel the PIN code



2.1.Quick using
1) insert the SIM card to in gps tracker
2) tracker Insert in the Car OBD interface, drive car to the outdoor
3)  send“smslink123456” to sim card in tracker ,tracker reply positioning information
EXPLANATION OF PARAMETERS/CODES IN SMS MESSAGE


             Pic(1)have gps signal                               Pic(2)no gps signal


Pic 1Replied real-time tracking information under GPS satellites signal.

  1.  Lat:22.67533 lon:114.03913  Positioning of the latitude and longitude values.
  2.  Spd000.3  This refers to the device moving speed. The unit is km/h.
  3.  T:06/14/17 09:14   real-tracking time, the Default is London time. You can set a time zone by sms command

Google Link: This is the link to the Google map showing the position of the device.

Pic 2Replied LBS information without GPS satellites signal.

  1. smcc:27a4 1223:  Real-time LBS data.
  2. Time:08/00/00     LBS positioning time.


If you received positioning information as picture 2, please take gps tracker go to outdoor and Walking ,then you can receive the satellite signal.

2.2  Insert in the Car OBD interface
connect the device to the car obd interface ,as shown below







INDICATOR LIGHT STATUS MEANING
green light -Solid GSM signal connection
green light -Flash NO GSM or searching gsm signal
blue light -Solid GPS signal connection
blue light –quickly Flash Searching gps signal

Note: All led will turn off after 10 minutes for best hide.if you call the device mobile number,so the led will turn on work again.
Connect 12V-36 v voltage of the power supply

3:Support Website tracking and APP tracking

3.1 Scan APP and Download APP
1)scan QR code---open with browser--- choose Android or IPHONE---download-- installation app
2) Download iOS APP:login in app store---dagps---Install the dagps APP

3.2: login platform  positioning
1)Open www.gps110.org
  Use tracker IMEI login, default password 123456.
You can tracker device,it is ok

NOTE:If you insert the correct SIM card and open GPRS, device in outdoor, still not online.Please set the APNcommands
we have two methods to find out apn content:ask simcard company or put sim card into cell phone to find out APN
SMS1: APN123456+space+Apn name ( for example tell you the apn name is ABC,so send  APN123456 ABC)
 If have the APN user name and password, need plus APN user name and password behind the APN name)
Eg:APN123456+space+APNname+space+APNuser name+space+ APNpassword


If want use other platform ,pls set new ip and port.
SMS1:  admin123456+space+IP+space+port
  Eg:   Admin123456 103.110.152.62 7018

4. SMS Command instruction

NOTE:
1) Device default password:123456
2)use of mobile phone APP or send message to the tracker about all set command,note the space in the command
3)The default mode is “GPRS”, Send SMS: sms123456 to the tracker, It will close GPRS.open GPRS mode,Send SMSgprs123456
4)the default alarm way is SMS+platform,Send command “way123456 2” alarm to SMS+platform+call



INSTRUCTION Example REPLY
Set admin number
support 5pcs admin
admin123456 mobile number
admin number receive alarm message
admin ok
Cancel admin number noadmin123456 mobile number noadmin ok
Set time zone time zone123456 1
 (1 is east 1, -1 is west 1)
Time zone ok
Set time zone(half time zone) Time zone123456 8 30
(8 30 is east 8.5 time zone)
time zone ok
Vibration alarm Shock123456 Shock ok
Cancel vibration alarm Noshock123456 Noshock ok
Intelligent mode
saving Power and GPRS
Sleepin123456
upload positioning when vehicle move and not upload positioning when vehicle stops
Sleepin ok
Cancel Intelligent mode Sleepout123456 Sleepout ok
Parameter Check123456 Device status
real-time tracking (default 10s) fix030s***n123456
every30seconds/1times positioning Can change time interval
T n ok


5. FAQ and processing methods.

  FAQ Instructions/Solutions
Fail to turn it on Insert card turn on,and connected12- 36 v power supply from OBD interface

No GSM signal Please check if SIM card installed correctly and have money, if  there a mobile phone GSM signal
  • Please check if SIM card is 2G or Compatible 2G GSM network. And have to mobile phone signal
  • Don’t turn on the PIN code
  • no calls can be diverted
  • Please check if voltage of the power is normal
  • Please check if voltage of the power is normal
No GPS A more open view of the sky is recommended to make sure the device can receive the GPS signal normally.in outdoor and take device to walk around
or take device to walk around
normally.in outdoor

No reply to SMS command Password wrong or the format is wrong. restore factory settings send messages “begin123456”
No reply to calling & No alarm message Authorized / admin phone number is incorrect or has not set up
SMS position OK, cannot the APP and web platform position Pls check if APN is correctly set. And set the correct APN
Platform position is difference and the actual position. position time don't update or no GPS signal: call the device phone number and receive the position message. If it shows like Pic 2, pls make sure the device can receive the GPS signal normally.in outdoor,and take device to walk around, make sure sim normal
