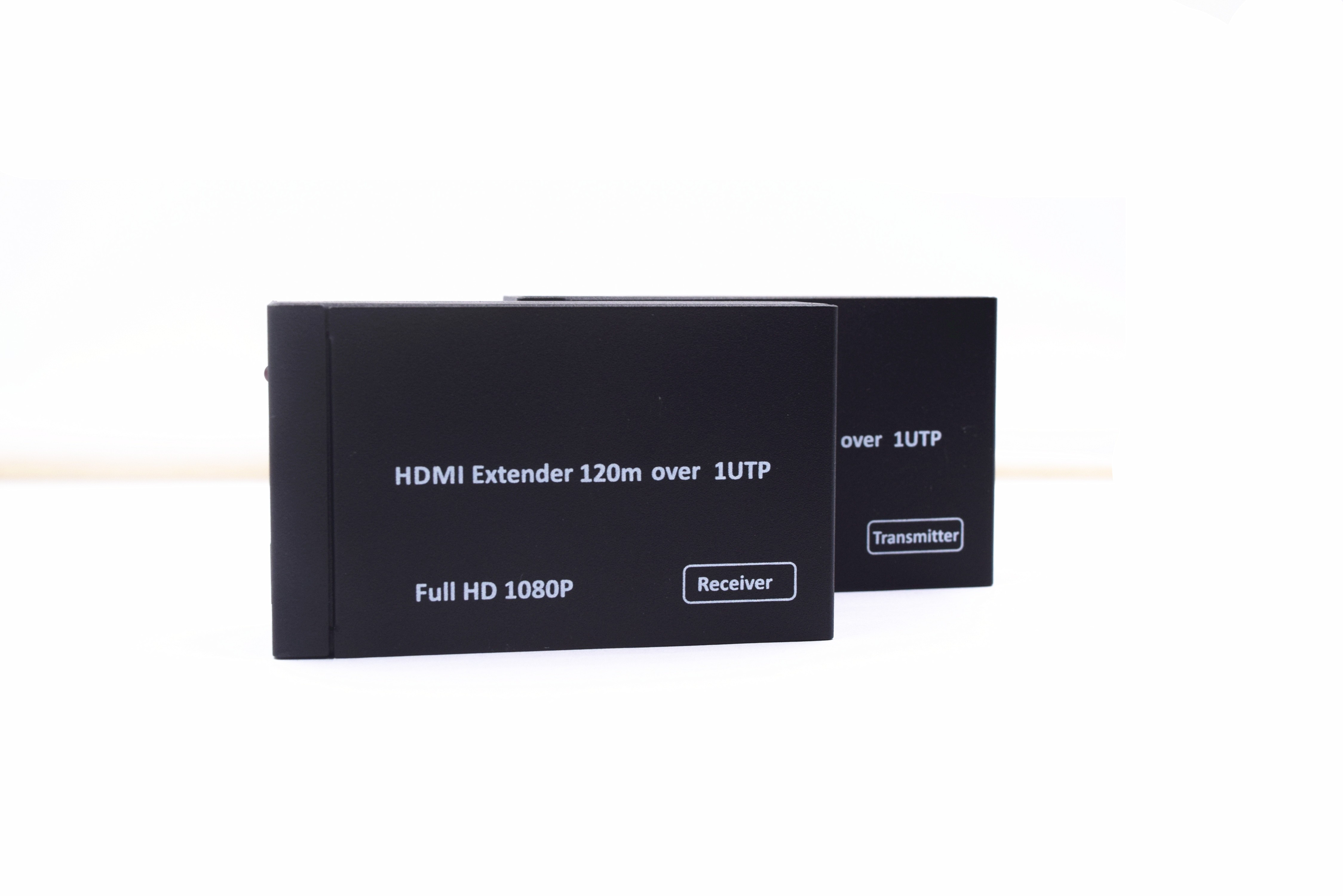

NEUE WARE (Mit Originalverpackung) -- BK-E60 HDMI über ein CAT 5E / 6 Extender 120M Übertragung von Deep Color und Digitalaudio Compliant HDMI 1.3, HDCP 1.1 and DVI1.1

The HDMI Extender over ONE CAT5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Extender and receiver, over ONE CAT5E/6 extender is your substantial HDMI extender tool.

 Features

• HDMI 1.3, HDCP 1.1 and DVI1.1 Compliant.
• Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
• Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away.
• When transmitting a signal in 1080p resolution the CAT5E/6 operating distance is 120 meters.
• Supports 1080P/60Hz

Specification

Operation Controls and Functions

1. HDMI Extender Transmitter

   Front Panel

LED : Power light.

HDMI : HDMI  Input  port.

5V : DC5V Input port.

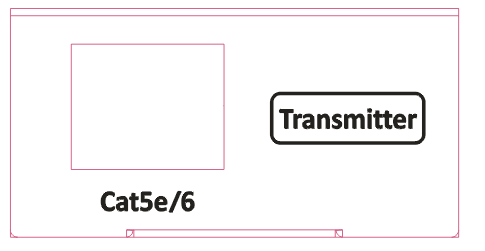

 Rear Panel

Cat5e/6 : Connect the CAT5E/6

 output of the transmitter with the CAT5E/6 input

 of the HDMI over single CAT5E/6 receiver.

2. HDMI Extender Receiver

Front Panel

LED : Power light.

HDMI : HDMI  Output  port.

5V : DC5V Input port.

 Rear Panel

Cat5e/6 : Connect the CAT5E/6 Input of the Receiver with the  CAT5E/6 output of the HDMI over single CAT5E/6 Transmitter.

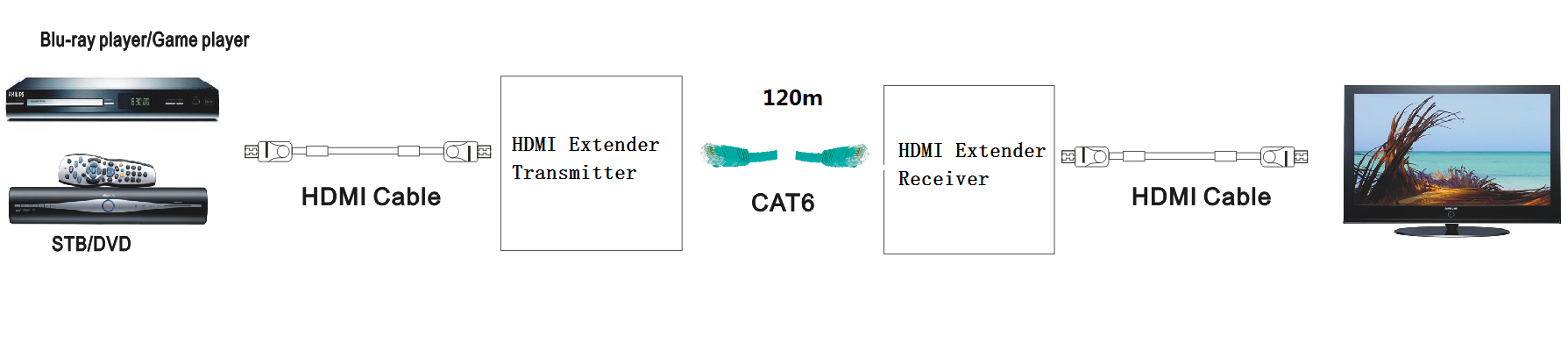

Connection and Installation

Package
