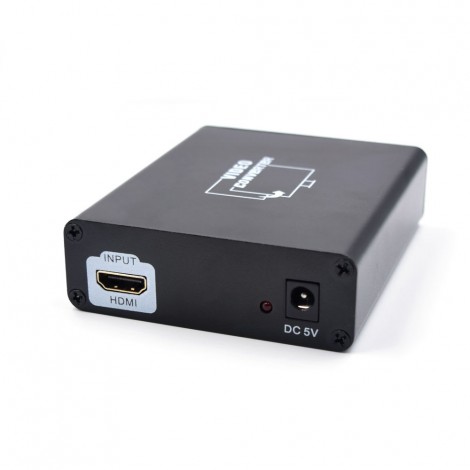

NK-C8 HDMI TO SCART Converter​​​​​​​

Products introduction

This converter is the HDMI signal full HDconversion Into a composite video signal output through a SCART interface, can make only hdmi HD interfacedevice connected to a TV set with SCART interface, The converter Can achieveenjoy high-definition video at the SCART interface On the TV 0 r playing games.

 performance characteristics

1 .HDMI input to SCART output,

2.SCART output = composite video signal + stereo audio signal;

3 .Support HDMI signal format: 480i (60Hz), 480P (60Hz), 576i (50Hz).576P (50Hz),720p(50/60HZ), 1080i(50/60HZ), 1080P(50/60HZ));

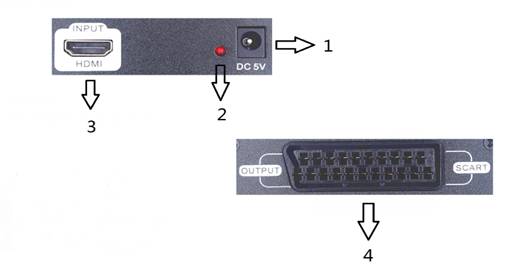

4 、 According to HDM1.3 standard ， compatible with HDCP.  The interface description

1 .DC 5V power input port

2 Work indicating LED

3.HDMl Signal input port

4.SCART output port

Performance parameters

 1 .Power: 5V/1A

 2.1nput: HDMI signal;

 3.0utput: SCART signal (composite video signal + stereo audio signal);

 4 .SCART output video signal format: NTSC

 5.SCART output video type impedance. 75Ω

 6.Product size: 110.2X8.4X2.8(L x W x H)

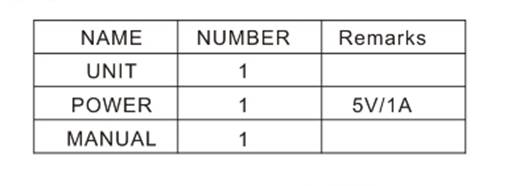

Packaging and accessories

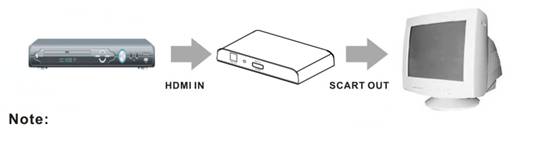

Connection diagram

1 SCART i nterface only outputs composite video signal and the sound signal,no RGB

2.Connected with product line Of HDMI should not exceed 10meters, the HDMI shielded Wire

3.Converter in 1080P Signal is connected to some HD equipment Output, may appear to flicker phenomenon, recommended HDMI signal using 1080P 0r720P

4.If the HDMI input signal source is the PC graphics card ， there may be noimage orimage out phenomenon, please change the graphics resolution i n order to achieve the best display effect.
